Dometic New Style Refrigerator Roof Vent Kit (Cap And Base)

Original price was: $43.30.Current price is: $30.31.

Fast reliable delivery options

Nature-friendly materials, 100%.

Elevate Your Shopping Experience

Safe Payments, Happy Customers

/

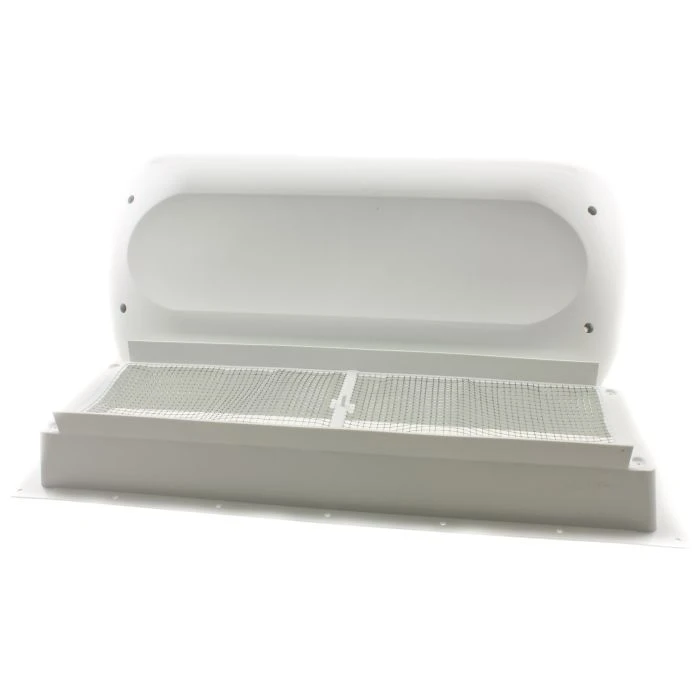

Dometic New Style Refrigerator Roof Vent Kit (Cap and Base)

Installation:
a) Center the base over the 6 ½” x 23 ¾” cutout.
b) Secure using ten #10 screws.
c) Place cap on top of base.
d) Secure cap to base using four #10 screws. These screws must be a minimum of 1 ¼” long to provide proper engagement.
e) Apply sealant over all the screws.

Dometic Item# 9108556615, Dometic Refrigerator Roof Vent
Complete Roof Vent Kit
VENT ROOF KIT,POLAR WHITE

Item #	82064
Brand	Dometic
Model	3311236.000
Color	Polar White
Included	Cap Base Hardware NOT included
Dimensions	Base – Bottom Flange Overall: 25-7/8" L x 8-1/4" W Top: 23" L x 6-3/4" W Base Sits 3-5/8" H Overall Mounting Holes for Cap Spaced: 21-7/8" L x 5-3/8" W Cap – Overall: 26-5/8" L x 11-1/4" W Cap sits 3-7/8" H Mounting Holes Spaced: 21-7/8" L x 5-3/8" W
Net Weight	2.25
Gross Weight	3.3
Special Order Item	No
UPC	713814074142
LTL Freight	No
